When the Reference 96 debuted in 1932, it established a structural baseline for Patek Philippe, moving the firm away from pocket watch adaptations toward dedicated wristwatch architecture. Early 20th-century wristwatches frequently relied on pocket watch movements adapted to circular cases, with wire lugs soldered onto the case band.
The Reference 96 introduced a three-piece case design informed by early 1930s industrial functionalism. The original designer remains unrecorded in historical factory archives. While modern literature often cites illustrator David Penney, his drawings of the reference were executed in 1982 for a commemorative publication rather than as 1930s concept art.
The case measures between 30.5 mm and 31 mm in diameter, with a thickness of 9 mm. Its proportions are defined by an 18 mm lug spacing.
By pairing a 31 mm diameter with an 18 mm lug width, the ratio of 0.58 exceeds the 0.45 to 0.50 average typical of 1930s dress watches. The lugs taper downward to follow the wrist, forged as continuous extensions of the midcase.

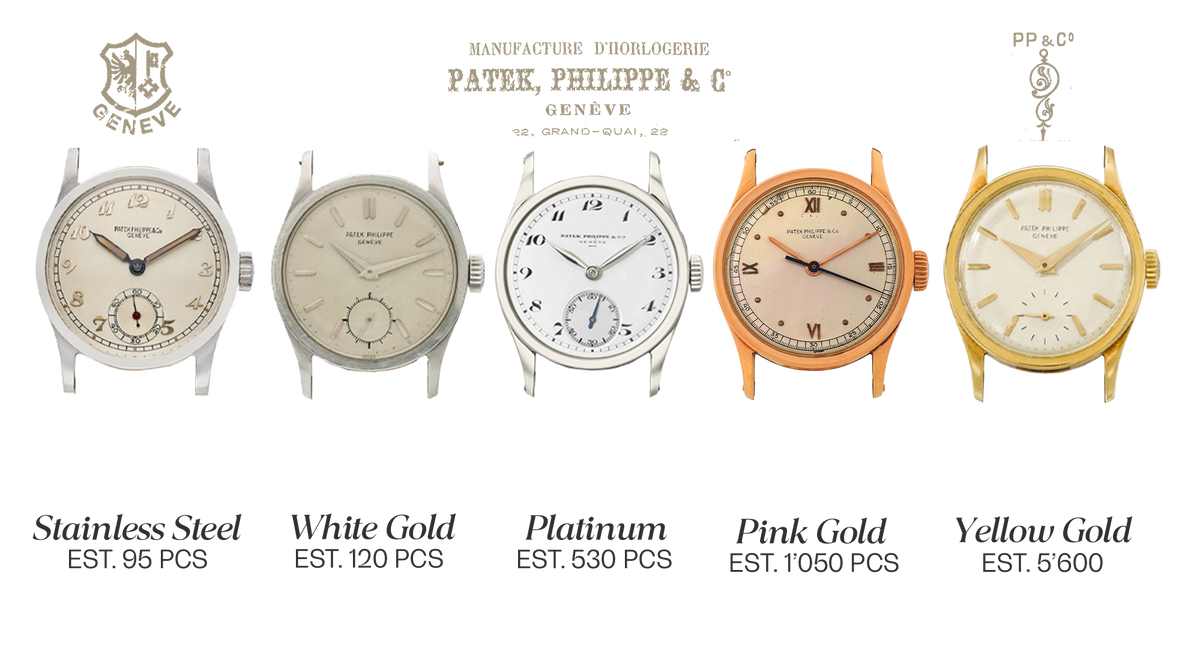

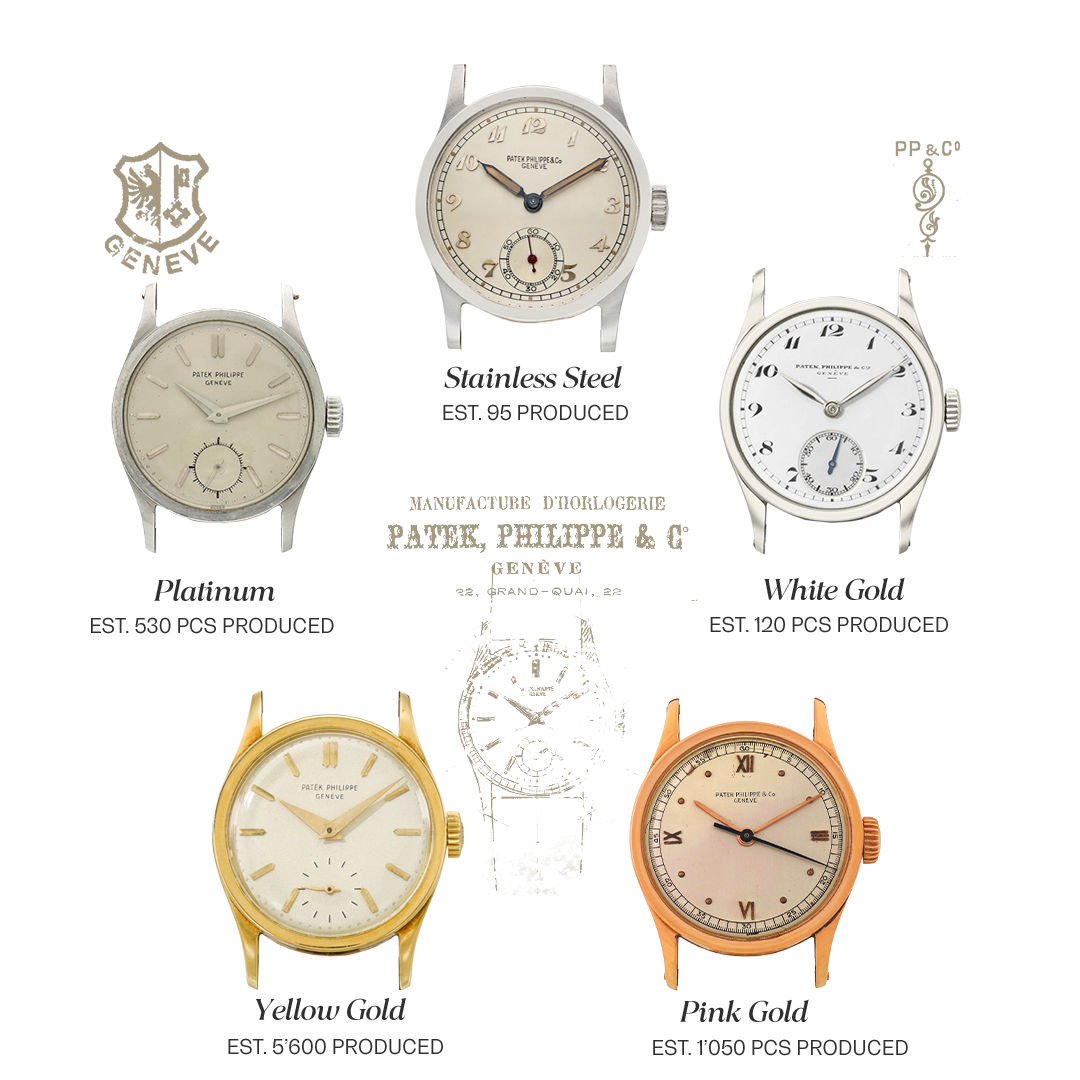

Production Estimates & Metal Distribution
Across its 41-year lifecycle (1932–1973), total Reference 96 production is estimated at roughly 10,000 to 12,000 pieces.
The vast majority were precious metal dress cases crafted by Geneva casemaker Antoine Gerlach (stamped Key No. 9) with classic snap-on backs—led by 18k yellow gold (~5,600 pieces), 18k rose gold (~1,050 pieces), platinum (~530 pieces), and 18k white gold (~120 pieces).
Conversely, stainless steel models were handled exclusively by Taubert & Fils (formerly Frères Borgel, stamped Key No. 11), featuring screw-down, water-resistant cases. With roughly 95 documented examples, these steel iterations represent less than 1% of total output.
(More on the casemakers just below)
The Casemakers of the Ref. 96

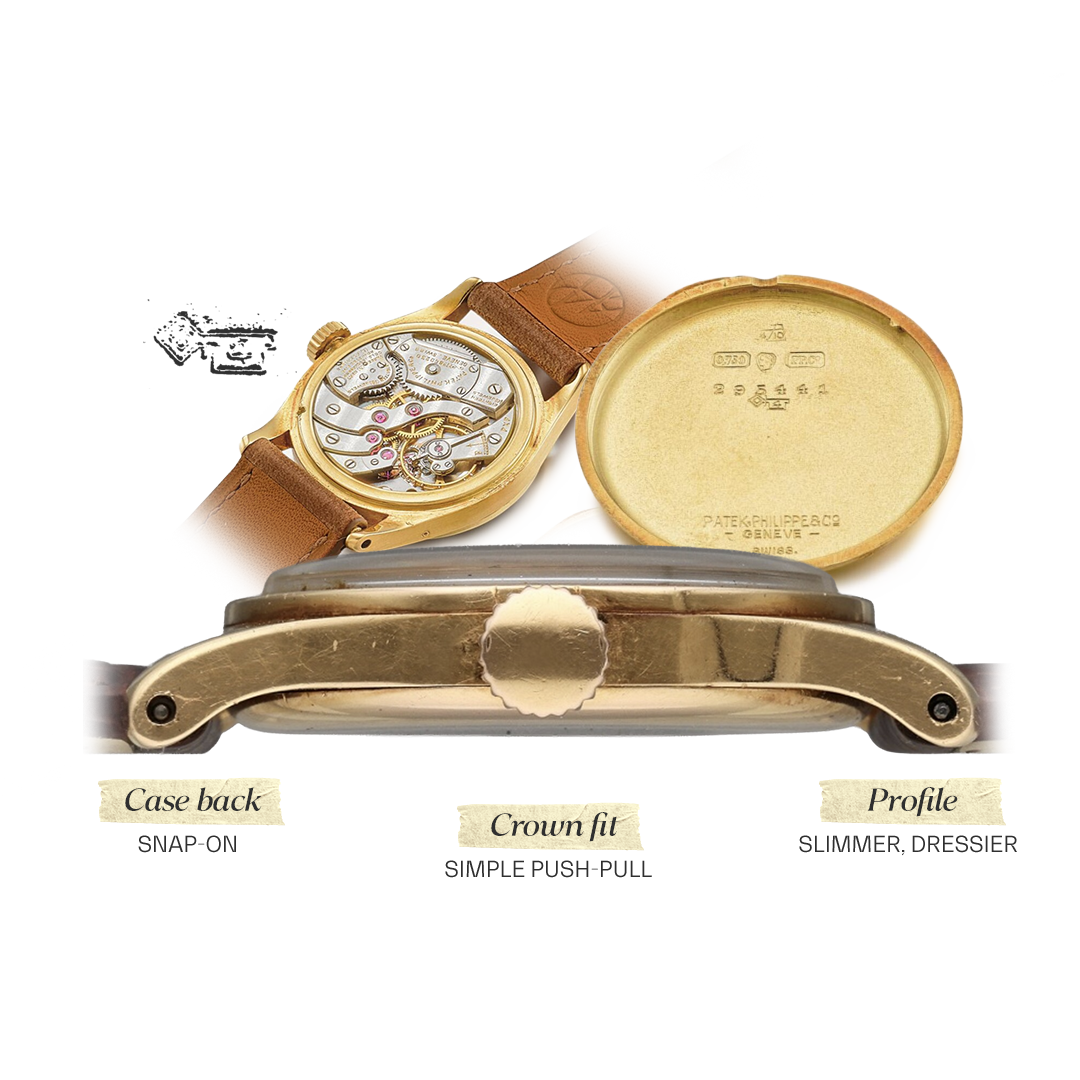

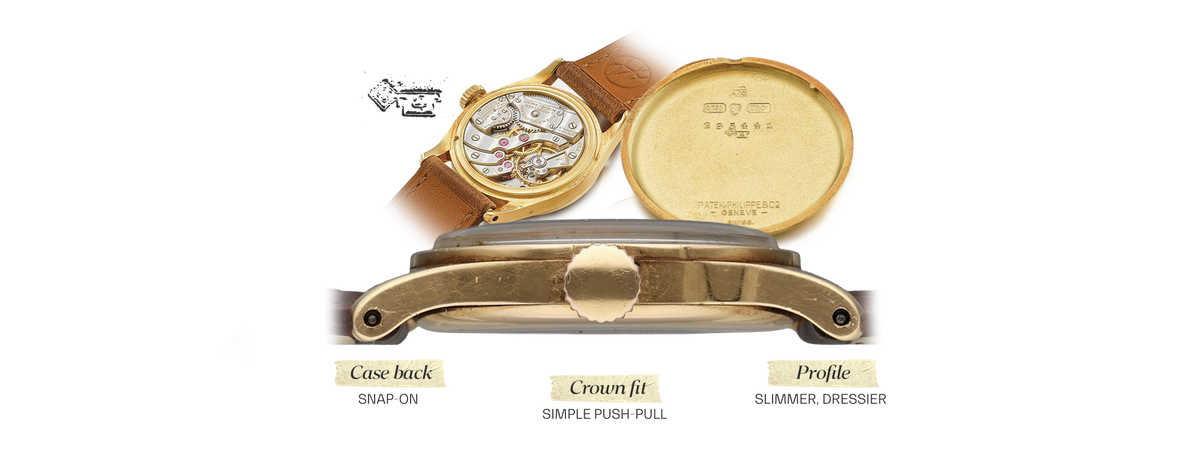

Antoine Gerlach
(Geneva Key No. 4)
Produced all precious metal (yellow, rose, white gold) and platinum cases. Gerlach executed the defining Bauhaus aesthetic of the 1932 Reference 96: a sleek three-piece snap-back construction featuring an integrated flat bezel, a slender mid-case, and fluidly tapered lugs that melt into the strap. Because gold and platinum were intended for formal dress wear, Gerlach prioritized an ultra-thin wrist profile, achieving everyday dust and moisture resistance purely through high-precision friction machining of the snap-on case back and bezel lips.

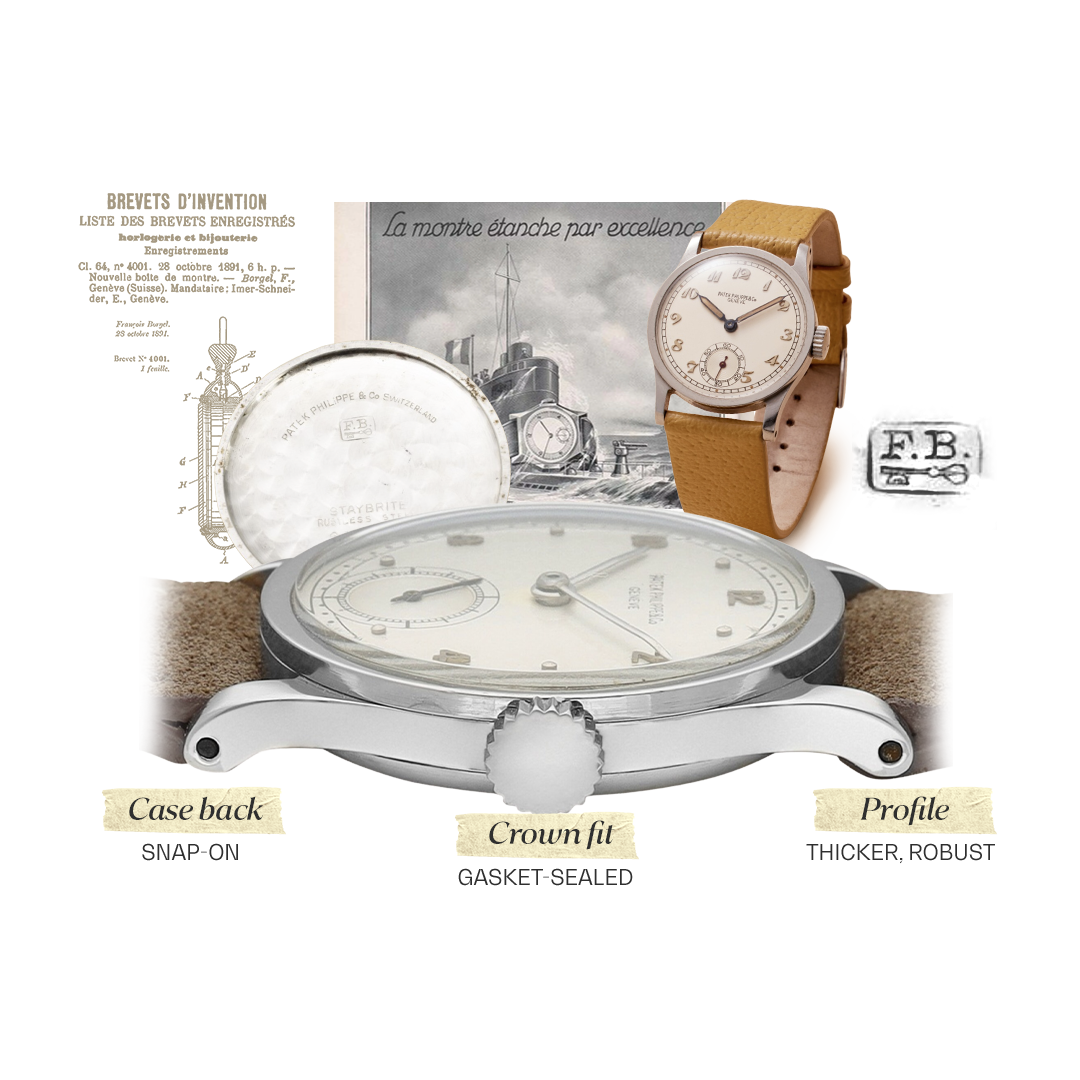

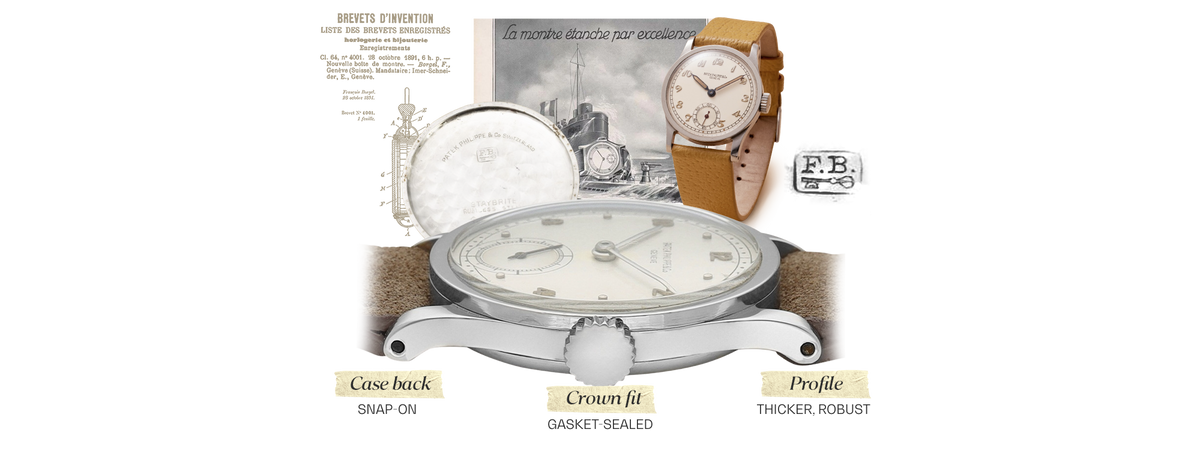

Freres Borgel / Taubert & Fils
(Key Number 11 - “FB” Emblem)
Manufactured both the iconic snap-on steel cases for the standard Reference 96 and Patek Philippe’s earliest purpose-built water-resistant cases. Because machining steel (“Staybrite”) was exceptionally difficult during the 1930s, Patek turned to the specialized expertise of Taubert & Fils (who acquired the François Borgel workshop in 1924).
The Standard Reference 96: Snap-Back Construction.
While master casemaker Antoine Gerlach produced the standard Reference 96 in precious metals, Taubert & Fils was tasked with crafting the exceedingly rare stainless steel executions.
- Preserving the Silhouette: Taubert utilized a traditional snap-on case back for the steel Reference 96 to strictly preserve the slim, elegant ~30.5 mm dress profile and flat proportions established by the gold models.
- Non-Waterproof: The standard Reference 96 was never fitted with a threaded screw-down case back.
The Water-Resistant Transition: The Decagonal Screw-Backs
When Patek Philippe sought to offer true water-resistant models in the late 1930s and 1940s, they did not alter the Reference 96 architecture. Instead, they developed dedicated sports and active-wear references utilising Taubert’s patented two-piece waterproof case systems; most notably Reference 565, Reference 438, and the Reference 1463 (“Tasti Tondi”) chronograph.
These dedicated references incorporated Taubert’s signature innovations:
- Decagonal Screw-Back (Swiss Patent CH 156807): A threaded case back with a distinctive 10-sided faceted rim, allowing a specialized proprietary wrench to torque the back securely against internal lead washers.
- Cork Stem Sealing (Swiss Patent CH 130942): A spring-compressed, moisture-resistant natural cork gasket integrated within the winding tube to seal the crown arbor against water ingress.
- Case Architecture: Accommodating the threaded collar, lead seal, and inner movement ring required a noticeably thicker, broader, and more robust case profile than the classical Reference 96.

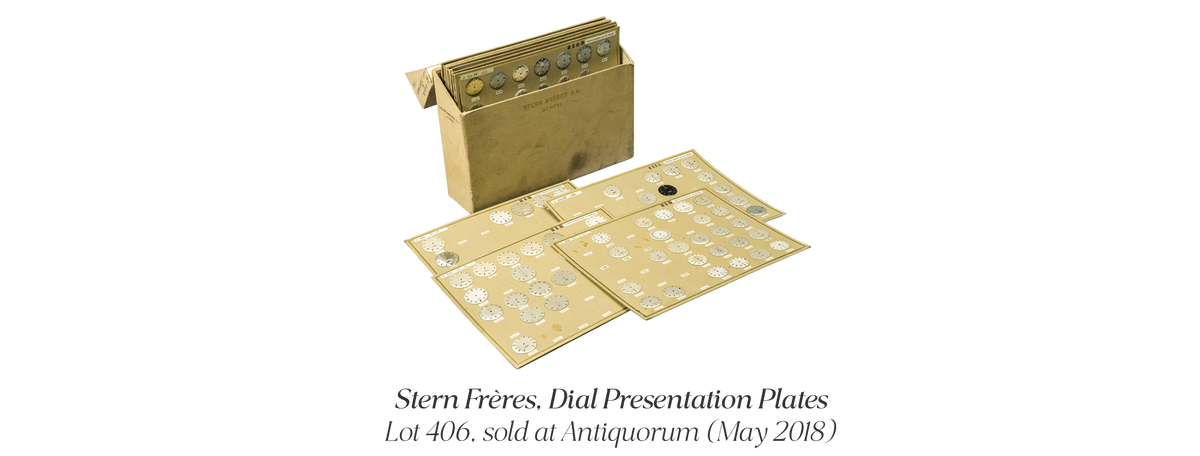

If the case of the Reference 96 was the sculpture, the dial was the canvas, and Patek Philippe entrusted it to the undisputed masters of the era, Fabrique de Cadrans Stern Frères. This was the premier dial maker whose owners, the Stern family, would go on to acquire Patek Philippe itself in 1932. These dials were not simply printed with ink, but were crafted as enduring micro-works of art built on solid silver base plates with a soft, warm opaline finish.
To ensure the branding and time scales would never fade over time, Stern Frères used the grueling, highly skilled technique of champlevé enameling:
- Engraving: Technicians hand-engraved deep microscopic channels directly into the silver base plate for every letter, line, and sub-dial track.
- Firing: Artisans packed these tiny grooves with pulverized black glass enamel, then baked the entire dial in a kiln at a blistering 850°C (1,560°F).
- Lapping: Once cooled, the dial surface was ground and polished down flat.
This process fused the glass directly into the silver base plate, leaving crisp, jet-black enamel lettering sitting flush with the dial, giving signatures a subtle, tactile depth that remains completely immune to UV fading or oxidation nearly a century later.
Dials by Stern Frères & The Champlevé Technique
The 1948 Signature Milestone
For collectors, the dial signature serves as one of the easiest ways to date a Reference 96:
- Pre-1948: Signed with traditional long-form branding, appearing as "Patek, Philippe & Co." or "Patek, Philippe & Cie."
- Post-1948: Modernized and simplified down to the clean "Patek Philippe" logo used today.

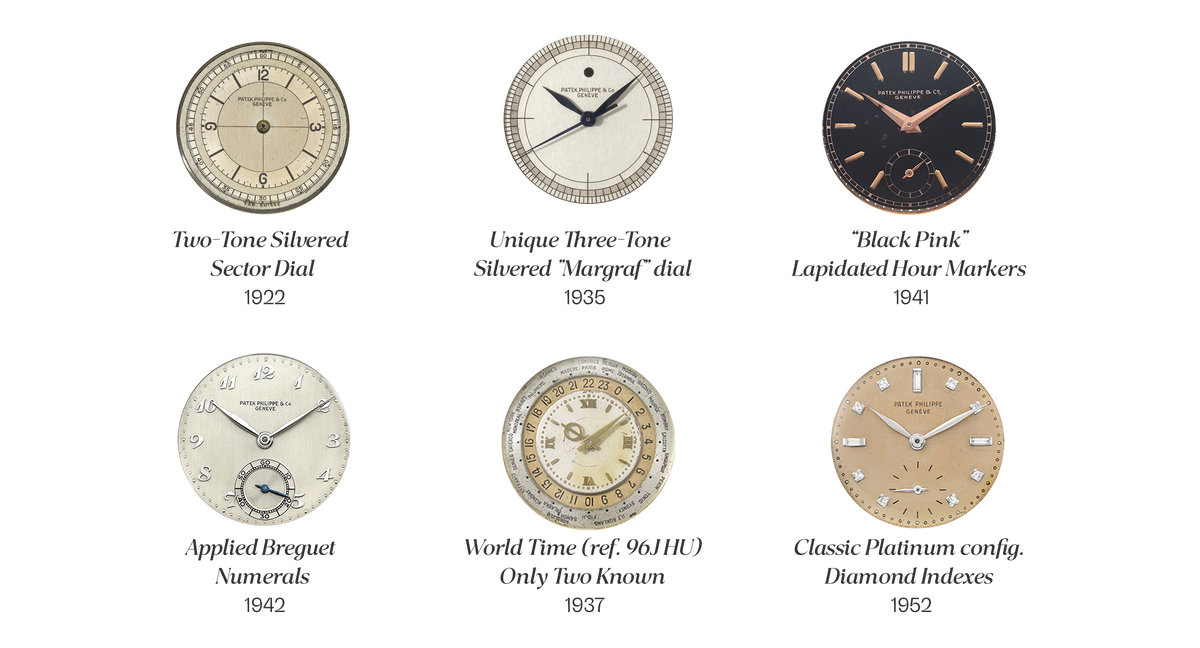

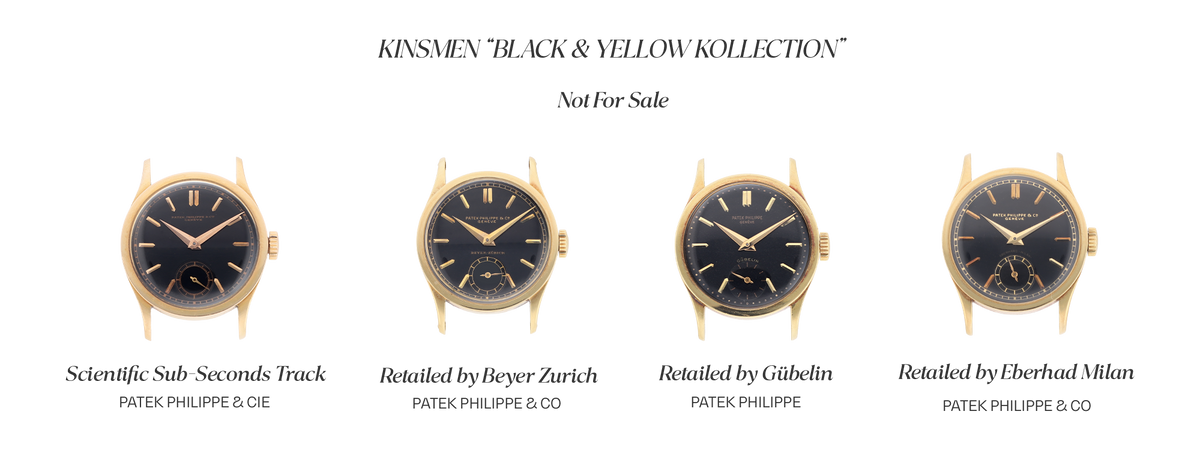

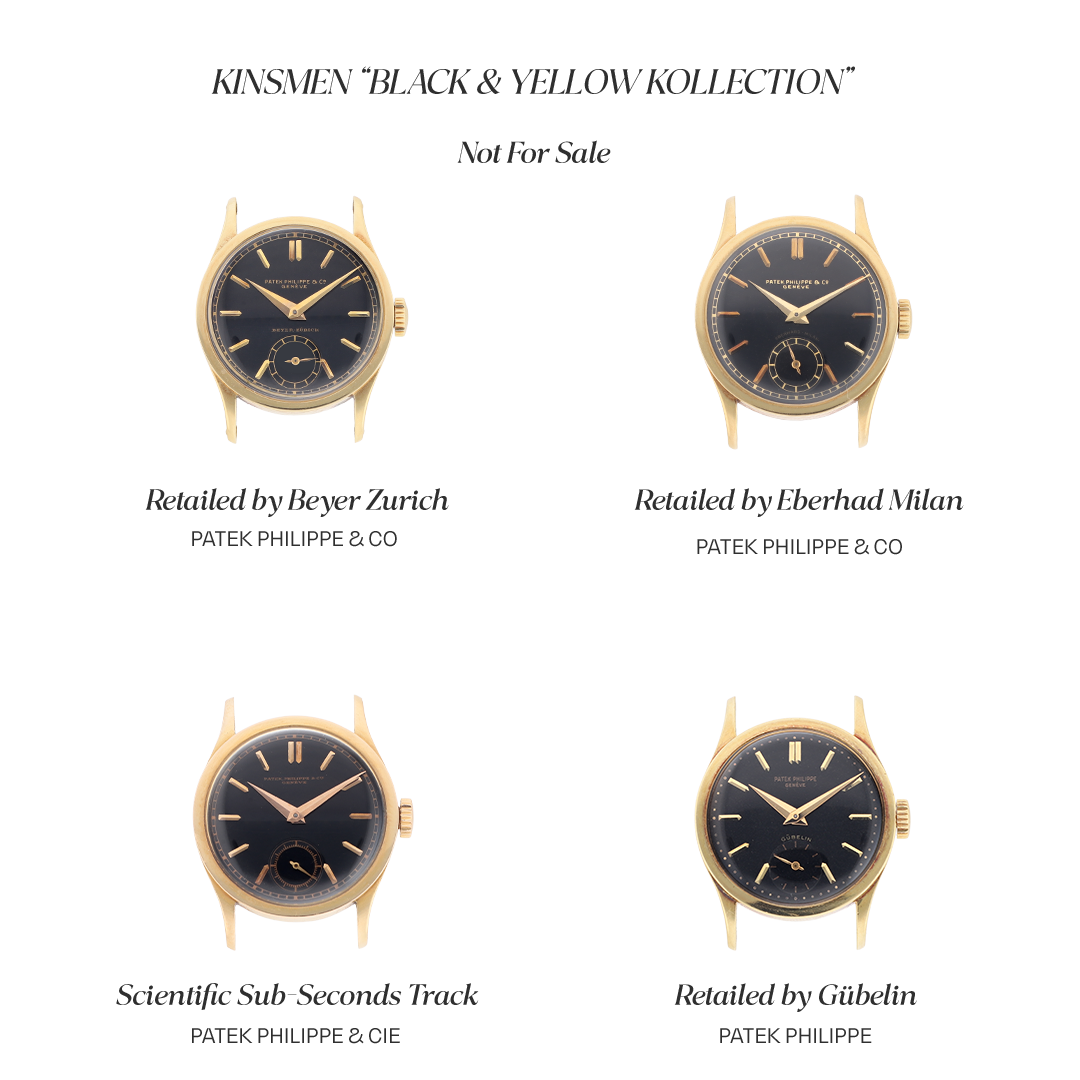

Dial Layouts: Standard Baseline vs. Rare Variations

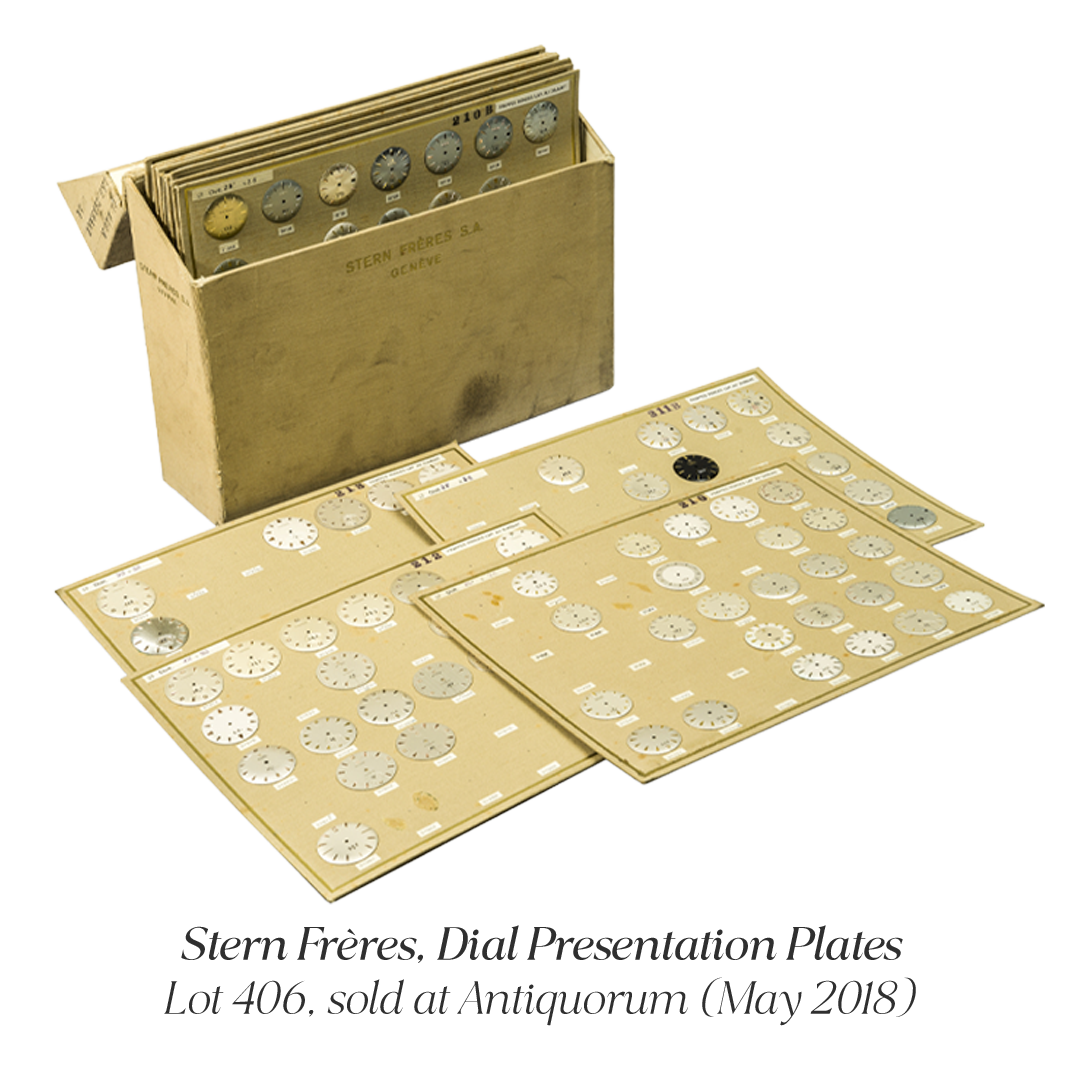

To evaluate a Reference 96 dial, it helps to understand that Patek Philippe produced a standard baseline look for everyday production, alongside a series of custom, special-order dials crafted by Stern Frères.
A. The Standard Layout (The Classic Baseline)
If you encounter a Reference 96, there is roughly a 90% chance it features this classic setup:
- The Look: A clean, minimalist opaline silver dial.
- Markers: Applied gold baton (stick-style) hour markers.
- Hands: Razor-sharp gold dauphine or leaf hands.
- Sub-Dial: A sunken small-seconds sub-dial located at 6 o'clock (or a clean central sweep-seconds hand on "SC" models).
This clean, uncluttered layout became the literal blueprint for what we know today as the Patek Philippe Calatrava.

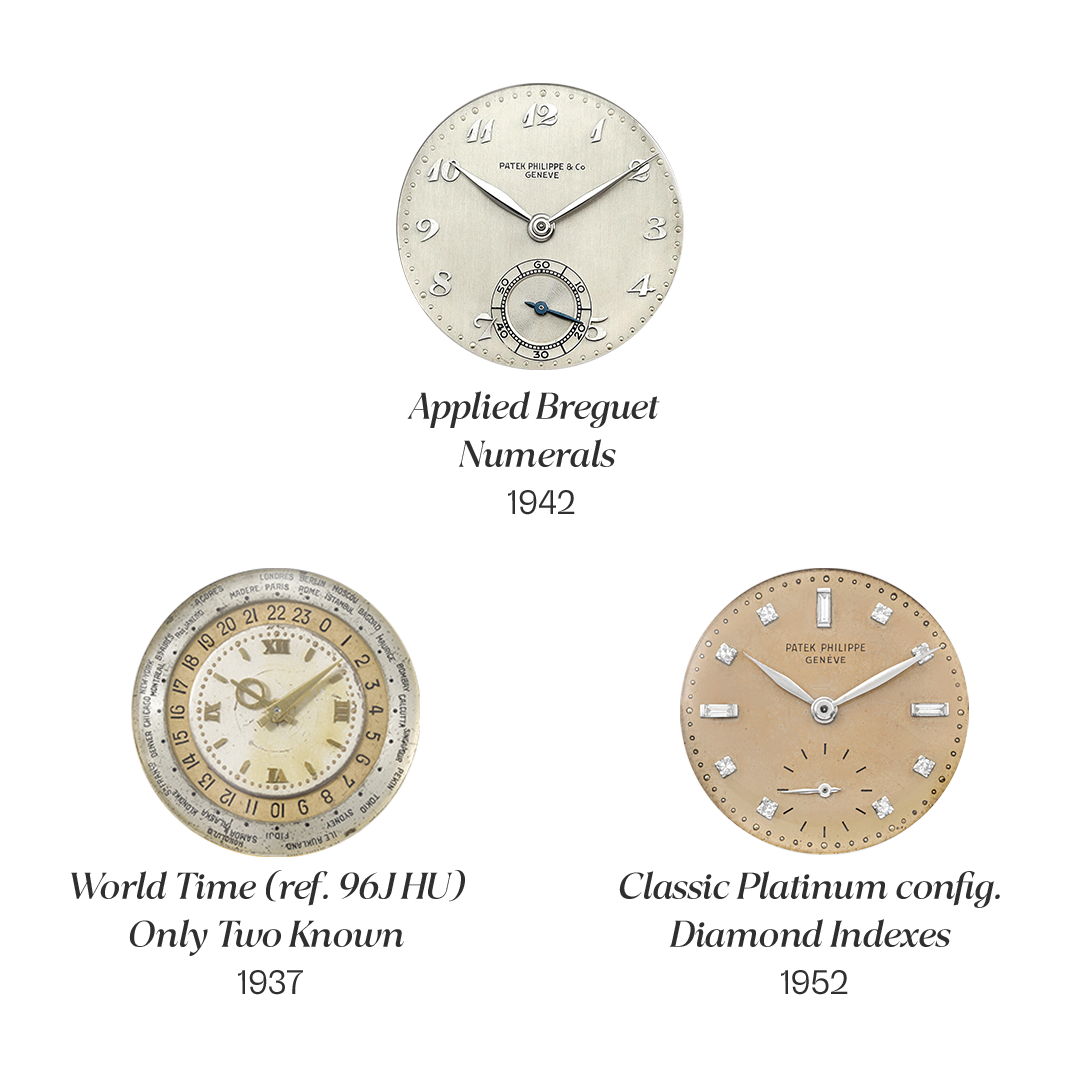

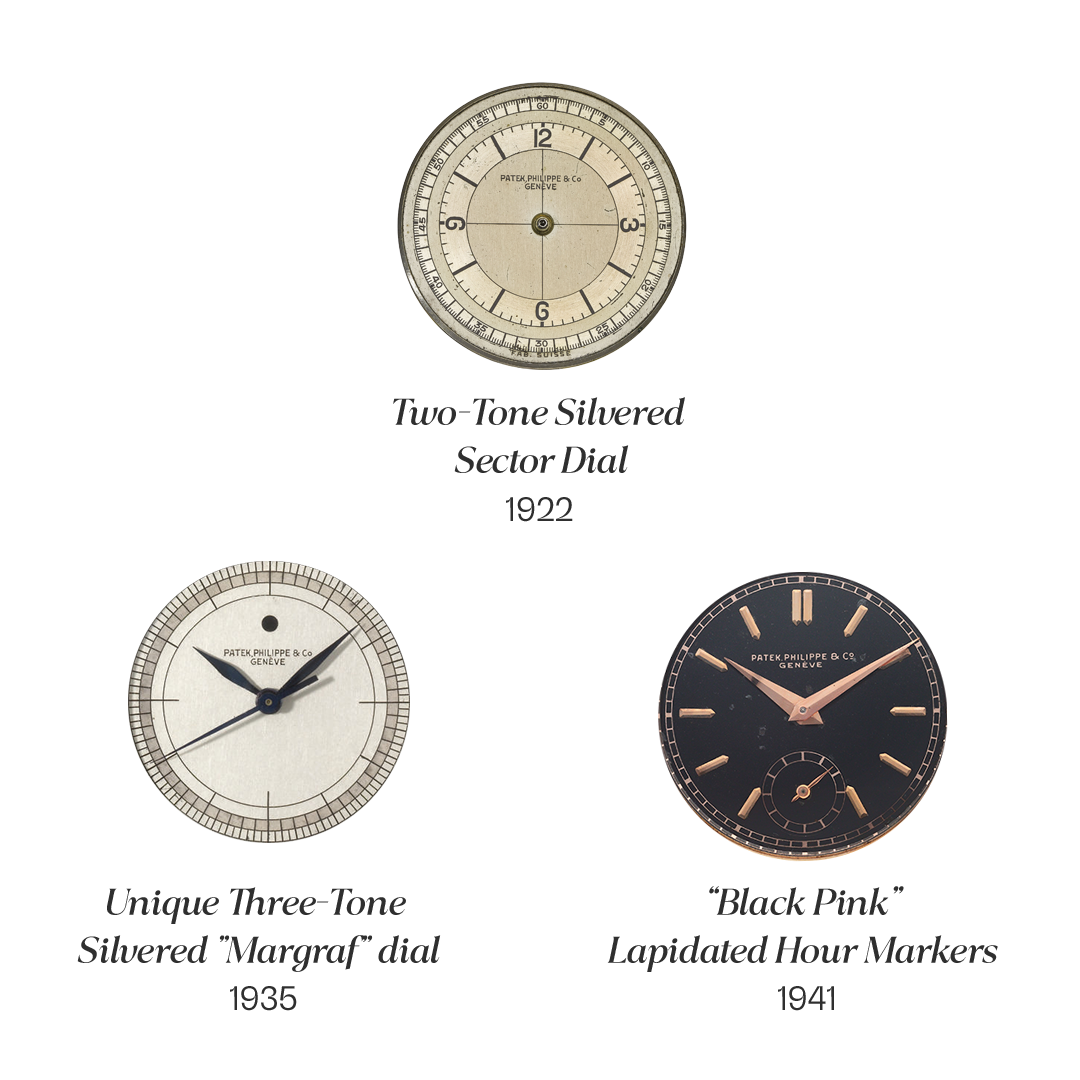

2. Special, Rare, and Custom Dials
For clients wanting something unique, Stern Frères produced specialised dials that strayed from the standard silver baton setup:
- Sector and Geometric Dials: Ranging from two-tone silvered sector layouts to unique multi-tone creations, such as three-tone silvered "Margraf" dials, designed for high-contrast precision time-reading.
- Black and Coloured Dials: Extremely rare alternative colour ways, such as the famous "Black Pink" configuration, pairing a deep black dial with rose gold accents and multi-faceted, gem-cut lapidated hour markers that reflect light at sharp angles.
- Applied Breguet Numerals: Replaced standard baton markers with raised, hand-applied gold Breguet numbers for a classical, formal presentation.
- Diamond-Set Dials: Reserved almost exclusively for platinum cases, replacing standard hour indices with brilliant-cut and baguette diamonds set directly into the dial face.
- World Time Dials (Ref. 96HU): Utterly singular complications, most notably Louis Cottier’s world time layout featuring a revolving outer city ring and 24-hour track, with only two known examples in existence.
Movement Evolution: Transition to In-House Calibers

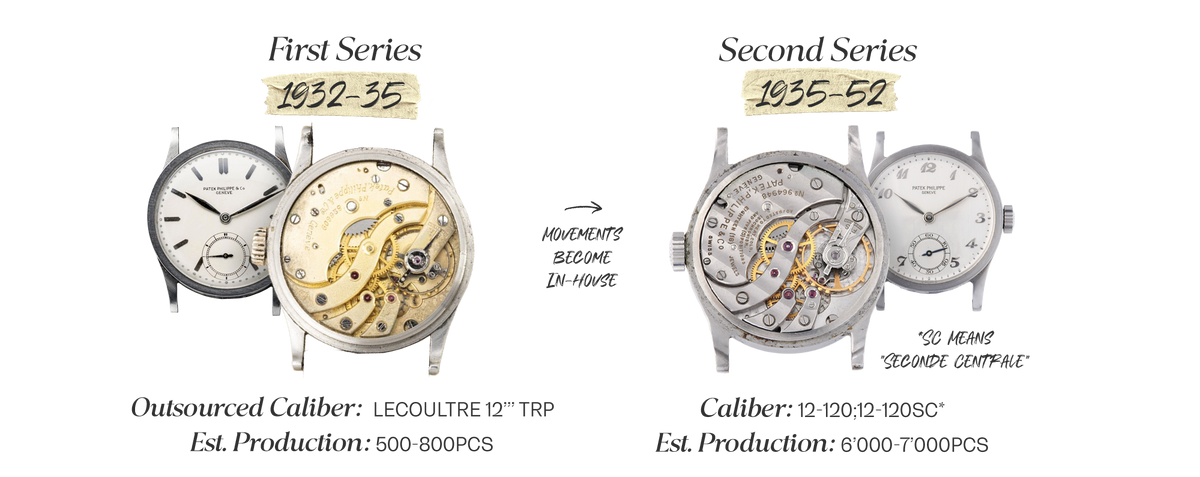

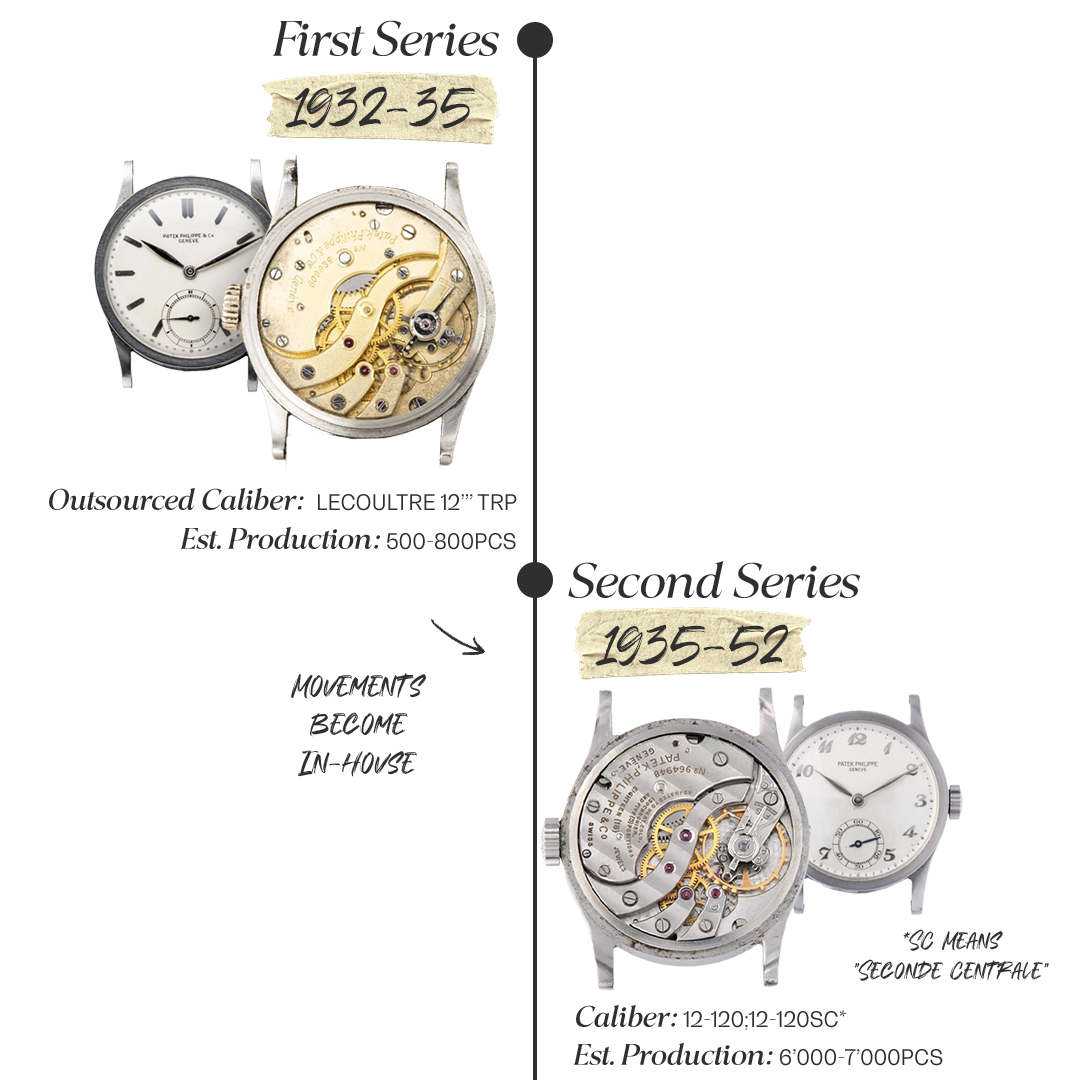

Over its four decades in the catalog, the Reference 96 used four sequential caliber generations, reflecting Patek Philippe's transition from bought-in ébauches to in-house manufacturing:
| Generation | Era | Base Caliber | Key Technical Specifications |
|---|---|---|---|
| First Series | 1932-1935 | LeCoultre Caliber 12’’’ TRP | Sourced raw movement blanks from LeCoultre & Cie, hand-finished in Geneva. Features a bimetallic compensation balance, cut lever escapement, and flat hairspring, with select early units featuring 18k solid gold wheel trains. |
| Second Series | 1935-1952 | Cal. 12-120, (and 12-120SC from 1939) | Patek Philippe’s historic first in-house 12-ligne manual movement, equipped with a Breguet overcoil hairspring and swan-neck regulator. Central-seconds (SC) variants incorporated an indirect drive module crafted by Victorin Piguet. |

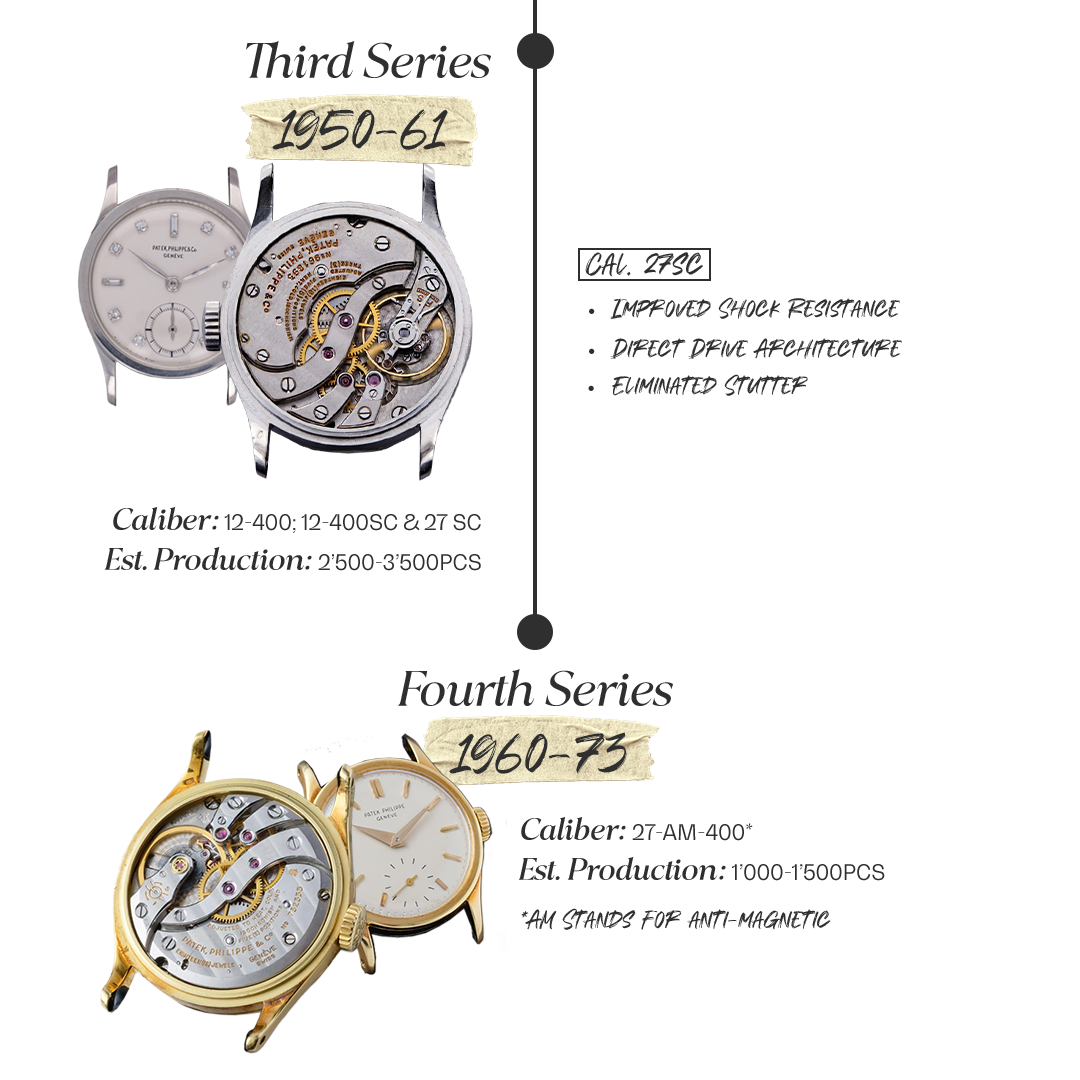

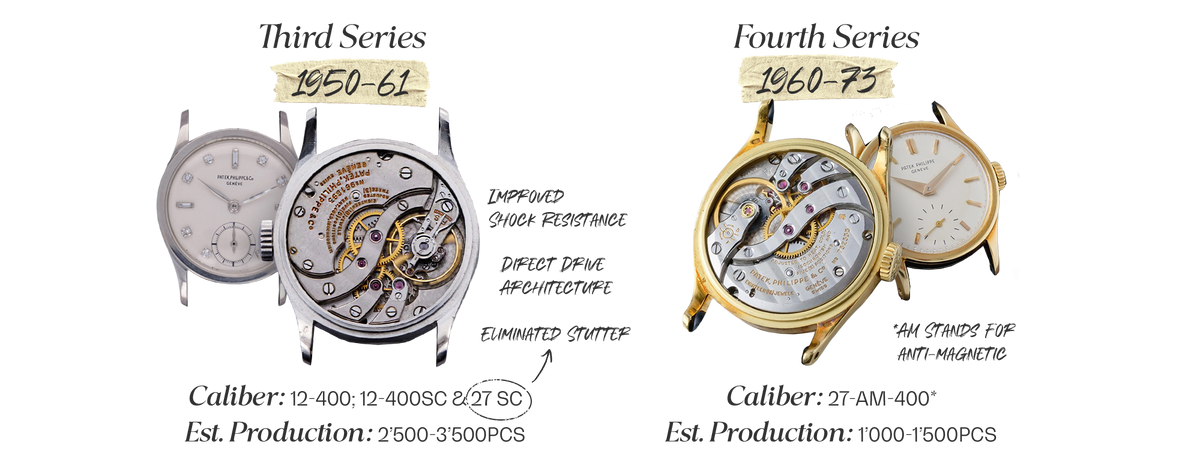

| Third Series | 1950–1961 | Cal. 12-400, 12-400SC (and Caliber 27SC) | Modernized successor featuring integrated Kif/Incabloc shock protection and non-magnetic beryllium-bronze alloys. Alongside the indirect-drive 12-400 SC, Patek deployed Caliber 27 SC, their first ground-up, direct-drive center-seconds movement. Caliber 27 SC eliminated seconds-hand stutter via central fourth-wheel driving, improved shock resistance via leaf-spring protection over the balance and center arbors, and delivered a clean, continuous sweep. |
| Fourth Series | 1960-1973 | Cal. 27-AM-400 | Dedicated anti-magnetic architecture (AM = Anti-Magnétique) utilizing soft-iron inner shielding, non-ferromagnetic alloys, and Patek’s revolutionary free-sprung Gyromax balance wheel. |
Author’s Note: Through meticulous archive analysis and serial-number cross-referencing, horological scholars have been able to narrow down and estimate how many units of each caliber were either produced or allocated specifically to Reference 96 cases. Collectors should note that these movement-based counts naturally differ from the casing estimates categorized by metal above.
When evaluating production figures for mid-century references spanning over four decades, exact numbers remain elusive, as no definitive, publicly available ledger exists outside of Patek Philippe’s private historical archives. These estimates represent the closest scholarly consensus available today.

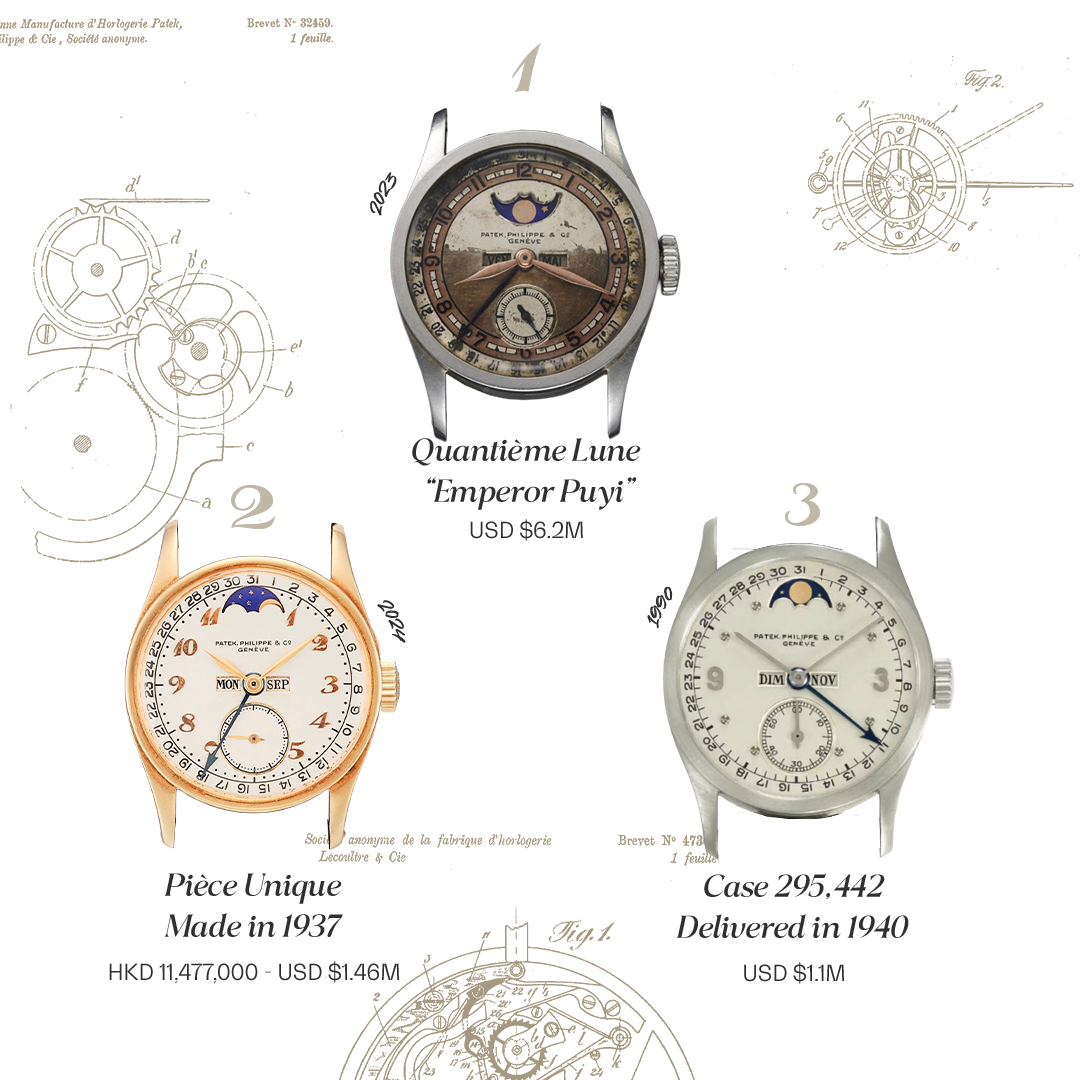

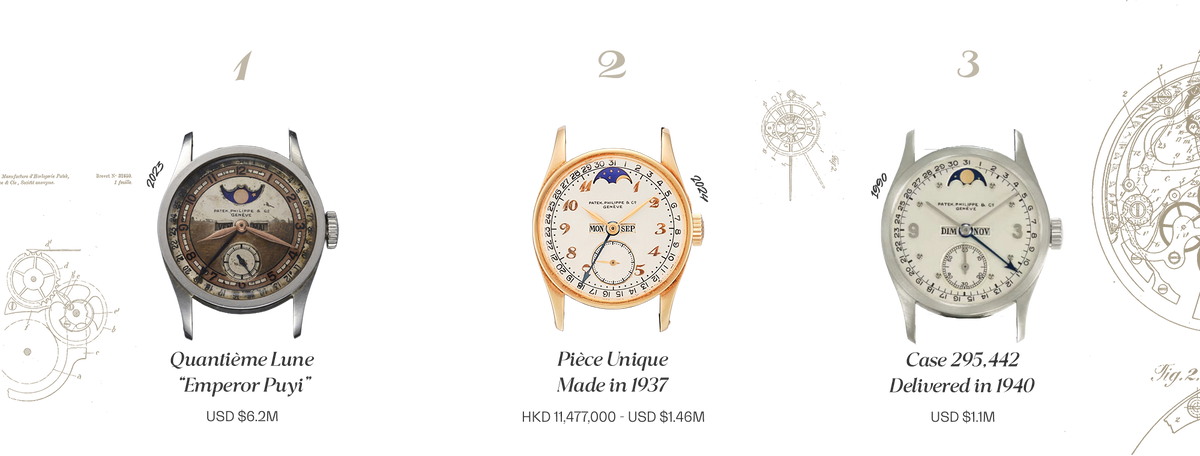

Auction Record Analysis and Notable Provenance
Market values for the Reference 96 vary based on case metal, dial condition, and mechanical complexity. While standard time-only models represent the majority of production, the Quantième Lune (Complete Calendar with Moon Phase) variants command significant attention at auction. Out of total production, only eight complete calendar examples are documented worldwide, including five in platinum and two in yellow gold. Three of these examples highlight key auction results:
1. Imperial Reference 96 Quantieme Lune (Aisin-Gioro Puyi)
In May 2023 at Phillips Hong Kong, a platinum complete calendar with moon phase achieved HKD 48,850,000 (~$6.2 million). The watch previously belonged to Aisin-Gioro Puyi, the last Emperor of the Qing Dynasty. Powered by an indirect Victorin Piguet movement made in 1929 and cased by Antoine Gerlach in 1937, it features a two-tone enamel roulette sector dial with Arabic numerals.
2. Pièce Unique (Made in 1937)
Crafted in 1937 and delivered to Tiffany & Co. in New York in 1940, this 18k gold complete calendar is one of two gold examples documented. Featuring hand-applied gold Breguet numerals and a moon phase window positioned at 12 o'clock, it sold for CHF 507,000 at Christie's in 2011, documenting the early commercial relationship between Patek Philippe and Tiffany.
3. Case No. 295,442 — The Bulova Platinum Calendar (Delivered in 1940)
Crafted in 1937 and delivered to Tiffany & Co. in New York in 1940, this 18k gold complete calendar is one of two gold examples documented. Featuring hand-applied gold Breguet numerals and a moon phase window positioned at 12 o'clock, it sold for CHF 507,000 at Christie's in 2011, documenting the early commercial relationship between Patek Philippe and Tiffany.
Structural Legacy
The Reference 96 established a visual baseline for Patek Philippe's serialized wristwatch production. Its three-piece case geometry, flat bezel, and proportioned dial helped standardize wristwatch design during an era when wristwatches were transitioning into primary timepieces. The reference demonstrated that detailed hand-finishing could be consistently executed across regular production runs.
This design approach influenced subsequent complicated references. When Patek Philippe introduced the Reference 1518 perpetual calendar chronograph in 1941 and the Reference 1526 perpetual calendar, both drew on the layout principles of the Reference 96. Stern Frères adapted the clear dial structure to a larger 35 mm case, incorporating calendar apertures and sub-dials while maintaining visual balance. The Reference 96 remains a foundational model in Patek Philippe's history, establishing design conventions that continue to influence the manufacture's collections today.
